Coupled Horizontal Centrifugal Pump Manufacturer
Product Overview
Our Coupled Horizontal Centrifugal Pump is a robust and efficient fluid-handling solution designed for reliable performance across a wide range of industrial and commercial applications. Engineered with precision, this pump is ideal for transferring clean and slightly contaminated liquids where consistent flow, durability, and low maintenance are essential.

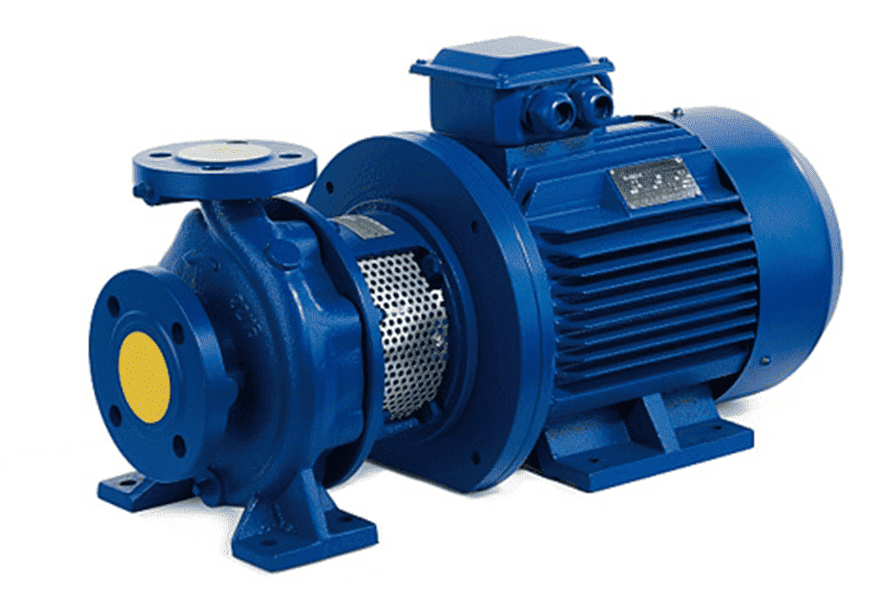

The pump consists of a centrifugal pump and an electric motor mounted on a common base plate and connected through a flexible coupling. This design ensures smooth power transmission, reduced vibration, and extended service life. The horizontal configuration allows easy installation, inspection, and maintenance, making it a preferred choice in continuous-duty operations.
Key Features
Optimized hydraulic design ensures maximum efficiency with reduced power consumption.
High-quality cast iron, stainless steel, or alloy materials to suit different fluid requirements.
Flexible coupling minimizes misalignment, vibration, and noise for quiet, stable running.
Quick dismantling and servicing without disturbing the piping system — reducing downtime.
Mechanical seal or gland packing options for reliable, safe, and leak-free operation.
Suitable for various capacities, heads, and motor ratings — fully customizable configurations.
Technical Specifications
| Pump Type | Horizontal Centrifugal Pump (Flexible Coupled) |
| Mounting | Horizontal, Base Plate Mounted |
| Suction / Delivery Size | 25 mm to 300 mm |
| Capacity (Flow Rate) | Up to 1,000 m³/hr |
| Head Range | Up to 150 meters |
| Speed | 1440 / 2900 RPM |
| Motor Rating | 0.5 HP to 200 HP |
| Motor Type | TEFC Squirrel Cage Induction Motor |
| Power Supply | Single Phase / Three Phase |
| Voltage | 220–240 V (1 Phase), 380–440 V (3 Phase) |
| Frequency | 50 Hz (60 Hz optional) |
| Pump Casing Material | Cast Iron / Ductile Iron / Stainless Steel |
| Impeller Material | Cast Iron / Bronze / Stainless Steel |
| Shaft Material | EN8 / Stainless Steel |
| Seal Type | Mechanical Seal / Gland Packing |
| Bearing Type | Deep Groove Ball Bearings |
| Maximum Liquid Temperature | Up to 90°C (Higher on request) |
| Maximum Working Pressure | Up to 16 Bar |
| Coupling Type | Flexible Pin Bush / Gear Coupling |
| Direction of Rotation | Clockwise (Viewed from Motor End) |
| Standards | IS 1520 / ISO 2858 / ISO 5199 |
| Applications | Water Supply, HVAC, Firefighting, Process Fluids |
Applications
Our coupled horizontal centrifugal pumps are designed to deliver reliable performance, long service life, and cost-effective operation. With strict quality control, precise engineering, and customizable configurations, we ensure a pumping solution that meets your exact operational needs. For customized specifications or technical assistance, please contact our team — we'll be happy to support you.
Our engineers will size the right pump for your application.
