High Pressure Piston & Plunger Pump Manufacturer

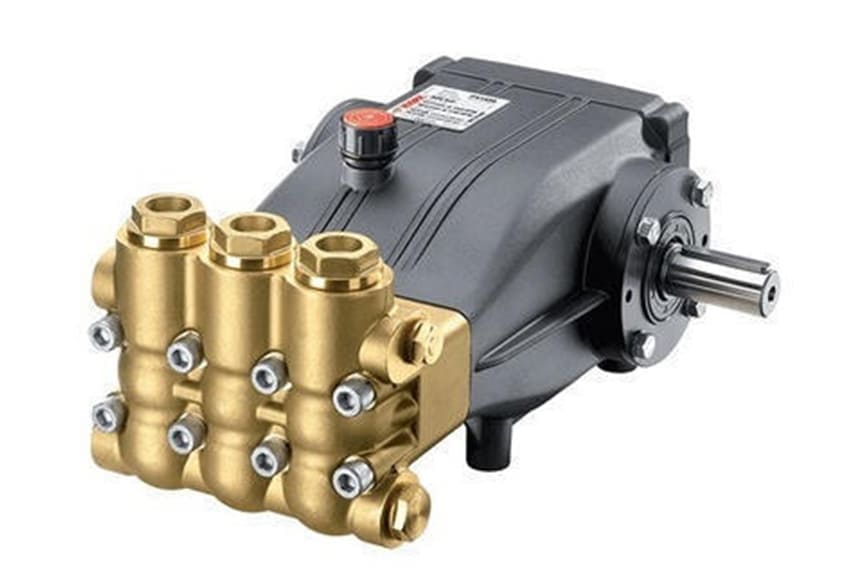

High Pressure Piston & Plunger Pumps
An industrial-grade positive displacement pump engineered to deliver exceptionally high pressure and accurate flow for the most demanding industrial applications requiring reliability, precision, and continuous-duty performance.
Product Overview
A High Pressure Piston Pump is an industrial-grade positive displacement pump designed to deliver exceptionally high pressure and accurate flow for the most demanding applications. Engineered with a robust reciprocating mechanism, heavy-duty crankshaft system, precision-ground pistons, and advanced high-pressure sealing, this pump ensures reliable and long-lasting performance under extreme hydraulic loads.
High pressure piston pumps operate on a reciprocating action where the piston moves inside a hardened cylinder, enabling the pump to generate high discharge pressure at relatively low flow rates with consistent volumetric efficiency. These pumps are widely preferred in industries where pressure stability, accuracy, and reliability are critical.
The pump body is constructed using high-strength materials such as SS304, SS316, Alloy Steel, or Duplex Steel, ensuring superior corrosion resistance even when handling chemically aggressive or abrasive fluids. Its modular design allows for easy maintenance, quick inspection of internal components, and reduced downtime, making it suitable for continuous 24×7 industrial operation.
This pump is extensively used in RO plants (reverse osmosis high-pressure feed), hydrostatic pressure testing, pipeline flushing, boiler feed systems, descaling, industrial washing, chemical injection, petrochemical processes, oil exploration, mining applications, pharma utilities, and more. With high energy efficiency, reduced pulsation, smooth flow characteristics, and custom engineering capability, these pumps offer unmatched performance across a wide range of operating pressures and flow capacities.
Our High Pressure Piston Pumps are tested under strict quality assurance guidelines with multi-stage inspection, dynamic balancing, and endurance testing. This ensures durable construction, minimal leakage, and exceptional service life even in the toughest operational environments.
Technical Data
| Pump Type | Reciprocating High Pressure Piston Pump |
| Flow Range | 10 LPH – 5000 LPH (customizable) |
| Pressure Range | 20 bar – 500 bar |
| Mechanism | Crankshaft-driven reciprocating piston |
| Piston Materials | Ceramic / Tungsten Carbide Coated / SS316 |
| Cylinder Material | Hardened Alloy Steel / SS316 |
| Wetted Parts | SS304 / SS316 / Duplex Steel |
| Valves | SS316 Ball or Poppet Valves |
| Sealing Arrangement | High-pressure PTFE / Graphite / Viton Seals |
| Lubrication | Splash / Forced Lubrication (depending on model) |
| Drive Options | Electric Motor / Gearbox / VFD Controlled Drive |
| Motor Power | 0.5 HP – 50 HP |
| Operating Temperature | −10°C to +120°C |
| Viscosity Handling | Up to 1000 cP |
| Mounting | Compact Base Frame / Skid-Mounted Assemblies |
| Connections | Threaded / Flanged (ANSI / DIN / Custom) |
| Optional Accessories | Pressure Gauge, Relief Valve, Pulsation Dampener, Suction Strainer |
| Testing Standards | API 674 (Optional), ISO / CE Compliance |
Key Features
Engineered to deliver pressures up to 500 bar with accurate and reliable flow characteristics.
Manufactured using high-strength materials including SS304, SS316, Alloy Steel, and Duplex Steel for maximum durability.
Heavy-duty crankshaft and reciprocating mechanism ensure dependable 24×7 industrial performance.
Modular construction allows quick inspection, easy servicing, and reduced maintenance downtime.
Specially designed wetted parts offer excellent resistance to chemicals, saline water, and abrasive fluids.
Available with multiple drive systems, accessories, and skid-mounted assemblies for specialized applications.
Applications
Benefits at a Glance
Our High Pressure Piston & Plunger Pumps are engineered to deliver exceptional pressure capability, precise flow control, and dependable continuous-duty performance. Manufactured with heavy-duty materials, advanced sealing systems, and precision-machined components, these pumps ensure superior efficiency, minimal maintenance, and long service life even under extreme operating conditions. With customizable configurations and strict quality testing, we provide reliable pumping solutions for the most demanding industrial applications.
Our engineers will help you select the ideal piston or plunger pump for your high-pressure application requirements.
