Product Overview

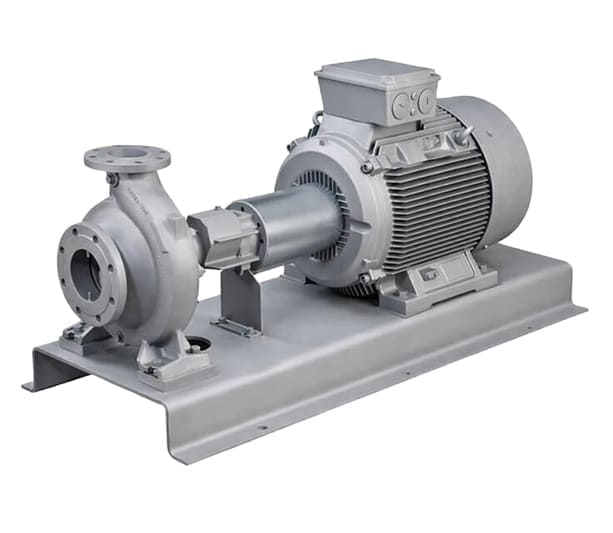

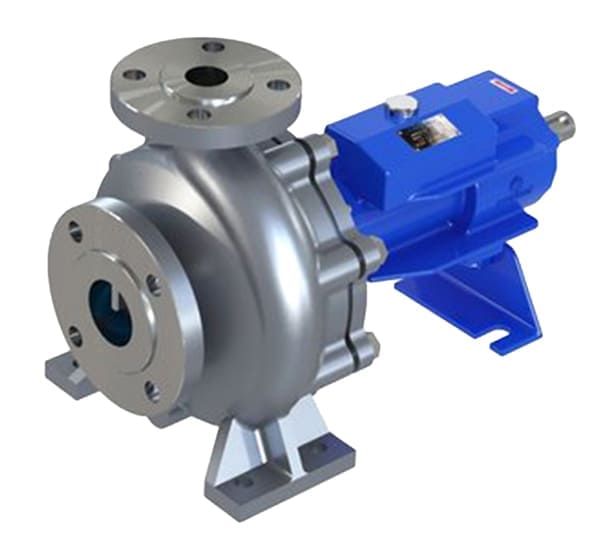

Our Hot Oil / Cryogenic Pump is engineered for the most demanding thermal applications where fluids must be transported at extreme temperatures—both very high and extremely low. Designed for reliability, safety, and exceptional performance, these pumps are ideal for handling thermal oils up to 350°C and cryogenic liquids down to –196°C such as liquid nitrogen, liquid oxygen, LNG, and other refrigerated gases.
Manufactured with precision-engineered components, advanced sealing systems, and robust metallurgy, our pumps ensure stable performance, minimal leakage, and long service life even under extreme thermal stress.
The Hot Oil / High-Temperature Pump is built using thermally stable materials and heavy-duty bearings designed to withstand continuous operation at elevated temperatures. It features a heat-resistant casing, cooling jacket options, and specially designed mechanical seals that prevent leakage even under severe thermal expansion.
The Cryogenic Pump version is constructed with stainless steel alloys, extended shafts, vapor isolation chambers, and cryogenic-grade seals to ensure optimal performance at ultra-low temperatures. Its design prevents vapor lock, minimizes heat ingress, and ensures stable NPSH conditions for boiling fluids.
Both pump variants feature a hydraulically efficient impeller, ensuring smooth, vibration-free operation and excellent energy performance.
Construction Material
| Component | Hot Oil Pump | Cryogenic Pump |
| Pump Casing | Cast Steel / SS316 / Ductile Iron | SS304 / SS316L / Special Cryogenic Alloys |
| Impeller | SS316 / Alloy Steel | SS304 / SS316L |
| Shaft | Alloy Steel / SS316 | SS316L / Duplex Stainless Steel |
| Seal | High-Temperature Mechanical Seal | Cryogenic Mechanical Seal (TC/SiC) |
| Bearings | High-Temperature Bearings | Low-Temperature Cryogenic Bearings |
Design Features
Heat-resistant casing with thermal expansion stability for continuous high-temperature operation.
High-temperature mechanical seal with cooling system prevents leakage even under severe thermal expansion.
Heavy-duty bearings with advanced lubrication system ensure reliable continuous-duty performance.
Robust design prevents thermal cracking and maintains stability during extreme temperature variations.
Manufactured using stainless steel and special cryogenic alloys that prevent brittleness at ultra-low temperatures.
Special shaft design with extended shaft arrangement prevents freezing and ensures dependable operation at ultra-low temperatures.
Vapor isolation chamber prevents gas lock, minimizes heat ingress, and maintains stable operating conditions.
Designed to provide stable NPSH characteristics and prevent cavitation in boiling cryogenic fluids.
Technical Specifications
| Parameter | Hot Oil Pump | Cryogenic Pump |
| Temperature Range | Up to 350°C (Thermic Fluid) | Down to -196°C (Liquid Nitrogen / LNG) |
| Flow Rate | Up to 300 m³/hr | Up to 250 m³/hr |
| Head | Up to 120 meters | Up to 100 meters |
| Speed | 1450 / 2900 RPM | 1450 / 2900 RPM |
| Pressure Rating | Up to 25 bar | Up to 20 bar |
| Connection Types | Flanged (ANSI / DIN) | Cryogenic Flanged Design |
Applications
Benefits at a Glance
Our Thermic Fluid, Hot Oil, and Cryogenic Pumps are specifically engineered for extreme temperature applications, delivering reliable operation from –196°C to 350°C. Advanced mechanical sealing systems provide high safety and minimal leakage even under harsh thermal conditions. Constructed using premium-grade alloys and stainless steel, these pumps offer exceptional durability, resistance to thermal shock, and protection against brittleness at ultra-low temperatures. The hydraulically optimized design ensures high efficiency, reduced power consumption, smooth vibration-free operation, and excellent NPSH characteristics that prevent cavitation in boiling cryogenic fluids. Heavy-duty bearings, easy-access components, and long-lasting seals minimize maintenance requirements and reduce downtime. With robust construction, thermal expansion resistance, cryogenic-ready materials, continuous-duty capability, and versatile configurations, these pumps are ideally suited for LNG, LN2, thermic fluid heating systems, refineries, chemical processing, pharmaceutical industries, and numerous other demanding industrial applications.
Our engineers will help you select the right hot oil or cryogenic pump solution for your extreme temperature application requirements.
