PP & PVDF Non Metallic Centrifugal Pump
PP & PVDF Centrifugal Pumps Manufacturer
A highly corrosion-resistant centrifugal pump engineered for safe and reliable handling of aggressive chemicals, acids, alkalis, and hazardous process fluids in demanding industrial environments.
Product Overview
Our Centrifugal PP/PVDF Mono-block and Coupled Pumps are specifically engineered to deliver reliable performance in highly corrosive and abrasive chemical applications. Manufactured using high-grade Polypropylene (PP) or Polyvinylidene Fluoride (PVDF), these pumps offer exceptional chemical resistance, mechanical strength, and long-term durability.

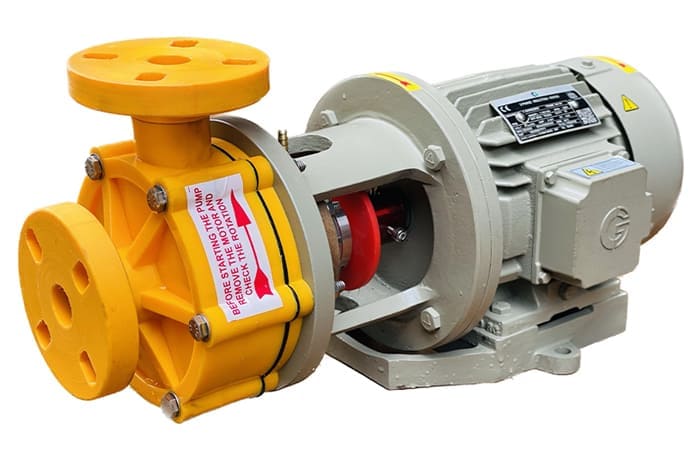

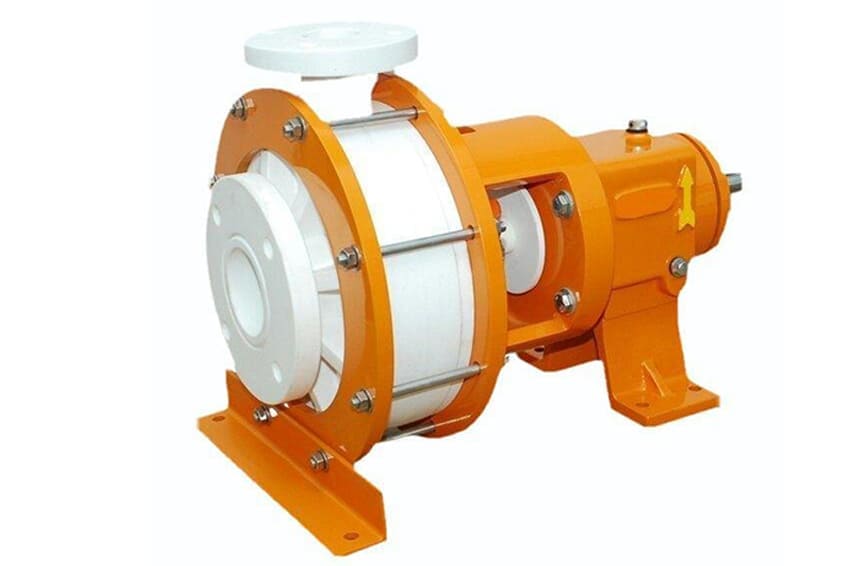

Available in both mono-block (close-coupled) and bare shaft (coupled) configurations, these pumps provide operational flexibility to suit various installation setups. The mono-block design ensures compactness and ease of installation, while the coupled version allows easy servicing and higher power handling capacity.
They are ideally suited for handling acids, alkalis, corrosive liquids, solvents, and effluents in industries such as chemicals, pharmaceuticals, textiles, paper, and water treatment. With leak-proof mechanical seals, dynamically balanced impellers, and robust construction, these pumps ensure efficient, safe, and continuous operation.
Technical Specifications
| Pump Type | Horizontal Centrifugal Chemical Process Pump |
| Construction Material | PP (Polypropylene) / PVDF (Polyvinylidene Fluoride) |
| Flow Rate (Q) | Up to 150 m³/hr |
| Head (H) | Up to 60 meters |
| Operating Temperature | −10°C to +90°C (PP) / up to +120°C (PVDF) |
| Working Pressure | Up to 6 bar |
| Speed | 1450 / 2900 RPM |
| Mounting Type | Mono-block (Close-coupled) or Bare Shaft (Coupled) |
| Shaft Seal | Mechanical Seal (Single / Double) |
| Bearings | Heavy-duty Anti-friction Bearings |
| Suction Type | End Suction |
| Motor Power Range | 0.75 kW – 30 kW / Flame Proof |
| Protection Class (Motor) | IP55 |
| Insulation Class (Motor) | F Class |
| Compliance | ISO / CE Standards |
Key Features
Manufactured using highly chemical-resistant PP or PVDF materials for handling aggressive and hazardous fluids safely.
Space-saving construction with simple installation and lower maintenance requirements.
Bare shaft coupled configuration offers easy servicing and superior power handling capability.
High-quality single or double mechanical seal arrangement ensures safe and contamination-free operation.
Dynamically balanced impellers provide efficient performance with reduced vibration and noise.
Back-pull-out design in the coupled version enables quick servicing without disturbing the piping system.
Typical Applications
Benefits at a Glance
Our PP and PVDF Non Metallic Centrifugal Pumps are designed to provide safe, efficient, and long-lasting performance in highly corrosive environments. Built using premium engineering polymers, precision-balanced hydraulic components, and reliable sealing systems, these pumps deliver exceptional chemical resistance, minimal maintenance requirements, and dependable operation. Available in both mono-block and coupled configurations, they offer flexible installation solutions for a wide range of chemical process applications.
Our engineers will help you select the ideal PP or PVDF pump configuration for your specific chemical handling requirements.
