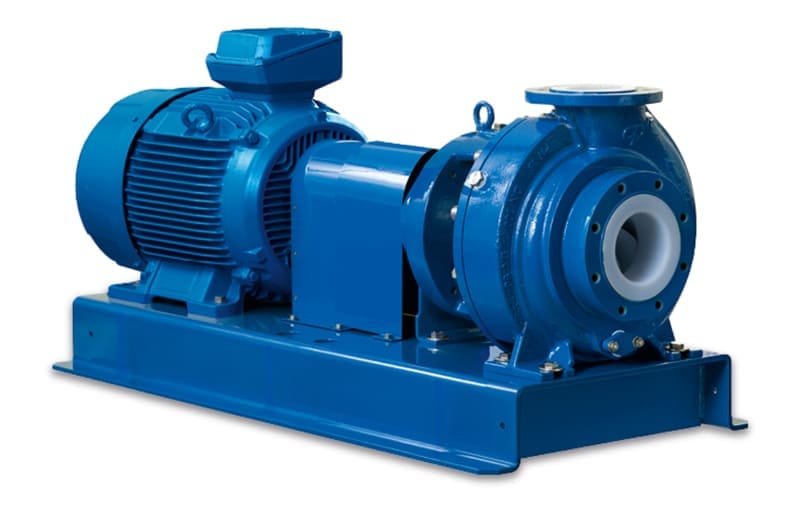

PTFE Lined Centrifugal Pump
PTFE Lined Centrifugal Pumps Manufacturer
A highly corrosion-resistant centrifugal pump engineered for leak-free transfer of aggressive chemicals, acids, solvents, and hazardous process fluids in demanding industrial environments.
Performance Range
| Capacity (Flow) | Up to 150 m³/hr (customizable) |
| Head | Up to 60 meters |
| Temperature Range | −20°C to +120°C |
| Pressure Rating | 6 – 10 bar (depending on size) |
| Speed | 1450 / 2900 RPM |
Product Overview
Our PTFE Lined Centrifugal Pump is engineered to deliver superior performance, unmatched corrosion resistance, and long service life in the most demanding chemical-processing environments. Designed for handling highly corrosive acids, solvents, and aggressive media, this pump offers reliable and leak-free operation, making it an ideal choice for industries that require absolute purity and durability.
The PTFE Lined Centrifugal Pump is built with a precision-molded PTFE (Polytetrafluoroethylene) lining that provides exceptional compatibility with a wide range of hazardous and corrosive chemicals. The pump casing, impeller, and wetted components are fully PTFE-lined, ensuring complete isolation of the fluid from metal surfaces.
This design prevents corrosion, eliminates contamination, and significantly extends the pump’s operational life. With a robust structure, optimized hydraulic design, and energy-efficient performance, this pump is widely used in chemical plants, pharmaceuticals, petrochemicals, water treatment, fertilizers, dyes, and other process industries.
Technical Specifications
| Pump Design |
Horizontal, Single-Stage, End-Suction Centrifugal Pump Back-Pull-Out Design for Easy Maintenance Close-Coupled and Bare-Shaft Options Available |
| Casing Lining | Virgin PTFE |
| Impeller | PTFE / PFA |
| Shaft Sleeve | PTFE |
| Gasket | PTFE |
| Mechanical Seal | Carbon / SiC / TC (Optional Combinations Available) |
| Seal Options |
Single Mechanical Seal Double Mechanical Seal Gland Packing (Optional) |
| Connections | Flanged Suction and Discharge as per ANSI / DIN |
Key Features
Complete PTFE lining of the casing and impeller offers maximum resistance to strong acids, alkalis, oxidizers, and solvents.
Engineered with precision sealing arrangements to ensure safe handling of hazardous and toxic liquids.
Optimized hydraulic design provides smooth flow, reduced power consumption, and improved overall efficiency.
Heavy-duty metal casing provides mechanical strength while PTFE lining handles chemical exposure.
All wetted parts are PTFE or other fluoropolymer materials to prevent corrosion and product contamination.
Modular construction allows quick inspection, easy servicing, and reduced downtime.
Technical Advantages
Typical Applications
Benefits at a Glance
Our PTFE lined centrifugal pumps are specifically engineered for the safe and efficient transfer of highly corrosive chemicals and hazardous media. Featuring complete PTFE-lined wetted components, robust construction, and precision sealing arrangements, these pumps provide exceptional chemical compatibility, leak-free performance, and long service life. Their energy-efficient hydraulic design and maintenance-friendly construction make them an ideal solution for demanding chemical process applications.
Our engineers will help you select the ideal PTFE lined pump configuration for your corrosive fluid handling requirements.
