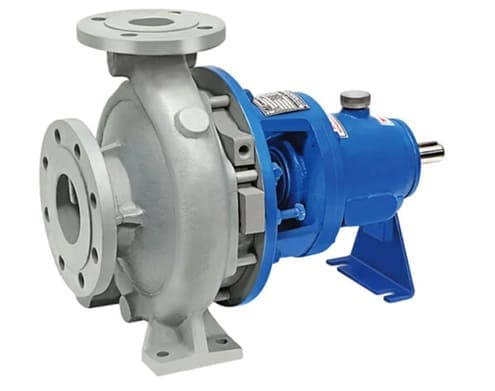

SS Centrifugal Chemical Process Pump
SS Chemical Process Pump Manufacturer
Product Overview
Our SS Centrifugal Pump is engineered for superior efficiency, durability, and hygienic fluid transfer across a wide range of industrial applications. Manufactured from high-grade Stainless Steel SS304, SS316, and SS316L, this pump delivers exceptional corrosion resistance, smooth operation, and long service life even under continuous-duty conditions.
Designed to handle clean water, mild chemicals, solvents, food-grade liquids, and pharmaceutical media, our stainless steel centrifugal pump ensures hygienic, contamination-free, and reliable performance in every application.
The Stainless Steel Centrifugal Pump is built using precision-machined components and a hydraulically efficient impeller that ensures consistent flow, minimal vibration, and low energy consumption. Its premium stainless-steel construction makes it ideal for applications requiring high purity, hygiene, and resistance to corrosive fluids.
With a back-pull-out design, maintenance becomes effortless, allowing seal replacements or rotor inspections without disconnecting the pump from the pipeline. The internal surfaces are polished to minimize friction, prevent bacterial growth, and ensure optimal flow characteristics.
This pump is widely used in the food & beverage, pharmaceutical, water treatment, chemical processing, dairy, and general industries due to its clean design and robust performance.
Key Features
Precision-engineered impeller delivers high flow rates with low energy consumption and stable performance.
Manufactured from SS304, SS316, and SS316L for excellent corrosion and rust resistance.
Hydraulically efficient design ensures consistent flow with minimal vibration and noise.
Enables easy maintenance and inspection without disconnecting the pump from the piping system.
Reliable mechanical seal system ensures hygienic and contamination-free operation.
Available in close-coupled or bare-shaft designs with multiple material grades and accessories.
Technical Specifications
| Flow Capacity | Up to 150 m³/hr |
| Head | Up to 60 meters |
| Speed | 1450 / 2900 RPM |
| Operating Temperature | 0°C to 120°C |
| Operating Pressure | Up to 10 bar |
| Viscosity | Up to 200 cSt |
| Connection Type | Flanged / Threaded |
| Pump Casing | SS304 / SS316 / SS316L |
| Impeller | SS304 / SS316 / SS316L |
| Shaft | SS304 / SS316 |
| Seal | Mechanical Seal (Carbon / SiC / TC) |
| Gasket | PTFE / EPDM |
| Base Frame | MS Painted / SS Optional |
Applications
Our SS Centrifugal Chemical Process Pumps feature 100% stainless steel wetted components, ensuring exceptional corrosion resistance and hygienic fluid transfer without contamination. Designed for high flow, high efficiency, and stable operation, these pumps offer low maintenance costs, long service life, and versatile performance across multiple industrial sectors. Suitable for both corrosive and hygienic environments, they provide a reliable and cost-effective pumping solution for demanding applications.
Our engineers will help you select the right SS centrifugal chemical process pump for your application.
Powering Industries with Reliable Pumping Solutions
From food processing and pharmaceuticals to chemicals and steel manufacturing, we provide innovative pumping systems designed for efficiency, durability, and superior performance.
