Dosing & Metering Pump
Dosing & Metering Pump Manufacturer

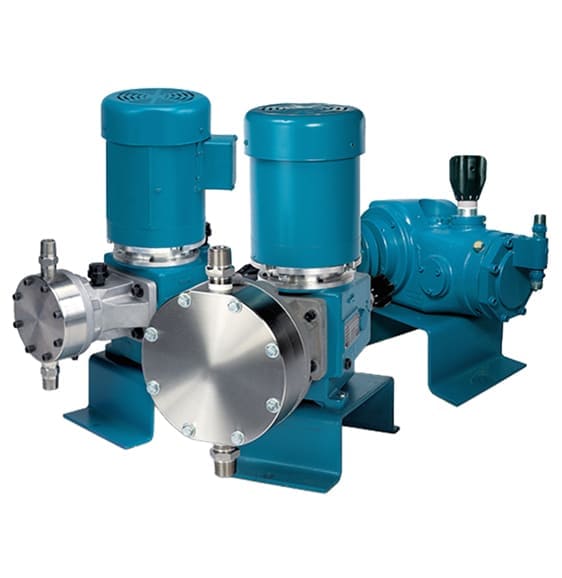

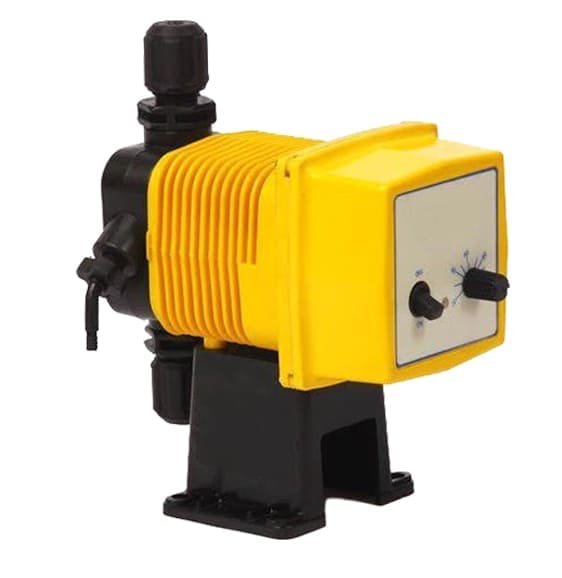

Product Overview
Our Metering / Dosing Pump is engineered for industries that demand precise, consistent, and controlled fluid injection. Designed to handle chemicals, additives, acids, alkalis, polymers, disinfectants, and process fluids, this pump ensures high accuracy, repeatability, and reliability in every dosing application.
Built with corrosion-resistant materials and advanced mechanical design, the metering pump provides stroke-by-stroke accuracy and stable performance even under varying pressure and temperature conditions. With both mechanical diaphragm, hydraulic diaphragm, and plunger dosing designs, this pump is suitable for low to high-pressure dosing across water treatment, chemical processing, pharmaceutical, and industrial applications.
The Metering / Dosing Pump is a high-precision positive displacement pump designed for exact chemical injection. Its micro-adjustable stroke mechanism and optional Variable Frequency Drive (VFD) allow fine-tuned control over dosing volume, ensuring accurate delivery even at low flow rates.
The pump is constructed with chemically compatible materials such as PP, PVDF, SS316, PTFE, PVC, and other engineering plastics depending on the medium being handled. Advanced diaphragm technology eliminates leakage, reduces pulsation, and ensures reliable operation.
Because dosing applications require accuracy, consistency, and fail-safe operation, the pump is equipped with overload protection, non-return valves, and stable linear stroke adjustment to maintain accuracy within ±1% of set capacity.
Performance Range
| Parameter | Range |
| Flow Rate | 0–5000 LPH (model dependent) |
| Pressure Rating | Up to 10–400 Bar |
| Dosing Accuracy | ±1% of full scale |
| Stroke Length | Adjustable 0–100% |
| Stroke Frequency | 10–150 strokes/min |
| Temperature | 0°C to 90°C (standard) |
| Viscosity Handling | Up to 1500 cPs |
Construction Material
| Component | Material Options |
| Pump Head | PP / PVDF / SS316 / PVC |
| Diaphragm | PTFE (Teflon) |
| Plunger (for plunger type) | SS304 / SS316 |
| Valves | Ceramic / SS316 / PVC |
| Gaskets & O-rings | Viton / EPDM / PTFE |
| Drive Mechanism | Cast Aluminum / MS Powder Coated |
Available Pump Types
Design Features
Micro-adjustable stroke mechanism ensures highly accurate dosing control and repeatability.
Chemically compatible wetted parts provide excellent resistance to aggressive chemicals and additives.
Advanced PTFE diaphragm technology eliminates leakage and minimizes pulsation.
Special check valves ensure accurate suction and discharge while preventing backflow.
Suitable for both continuous and batch dosing applications across multiple industries.
Optional digital controller and VFD provide flexible dosing control and easy maintenance.
Applications
Benefits at a Glance
Our Metering & Dosing Pumps are designed to deliver precise chemical injection with exceptional accuracy, reliability, and repeatability. Manufactured using corrosion-resistant materials and advanced diaphragm technology, these pumps ensure leak-proof operation, low maintenance, and stable performance even under varying pressure and temperature conditions. With multiple dosing technologies and customizable configurations, they provide a dependable and cost-effective solution for water treatment, chemical processing, pharmaceutical, food processing, and numerous industrial dosing applications.
Our engineers will help you select the ideal metering and dosing pump for your precise chemical injection requirements.
